SYNTHETIC FABRICS GUIDE
DTF Transfers on Polyester & Synthetic Fabrics
DTF transfers work on polyester, nylon, and spandex — but synthetics require different settings than cotton, and there are real failure modes (dye migration, scorching, edge lift) that most guides gloss over. This page covers all three synthetic fabric types in one place: what settings to use, how to prevent dye migration, and what to do when things go wrong. For a complete overview of DTF transfers, see our Complete Guide to DTF Transfers.
Quick Reference
DTF Press Settings for Synthetic Fabrics
| Fabric | Temperature | Time | Pressure | Peel |
|---|---|---|---|---|
| 100% Polyester | 270–285°F | 12–15 sec | Medium | Cold |
| 60/40 Poly-Cotton | 280–290°F | 12–15 sec | Medium | Cold |
| 50/50 Poly-Cotton | 290–300°F | 12–15 sec | Medium | Cold |
| Nylon | 265–275°F | 12 sec | Medium | Cold |
| Spandex / Lycra / Elastane | 270°F max | 12 sec | Light–Medium | Cold |
Blends are ordered by polyester content — as poly % drops (more cotton), the safe temperature rises. Always pre-press any synthetic 3–5 seconds before applying the transfer. Cold peel means waiting until the garment is fully cool to room temperature before pulling the film.
In This Guide

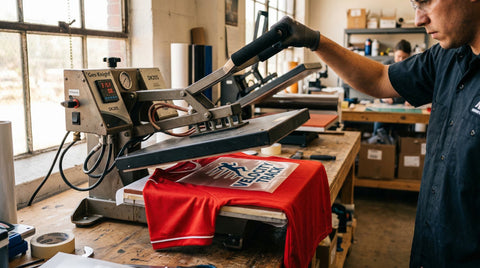

DTF transfer being pressed onto a polyester athletic jersey — lower temps and cold peel are the keys to clean results on synthetics.
Compatibility
Can You Put DTF Transfers on 100% Polyester?
Yes — and it works well when you adjust your settings. The short explanation: DTF transfers bond to fabric through a thermoplastic adhesive that activates under heat and pressure, attaching to the fabric's surface structure regardless of fiber type. Polyester doesn't need to absorb anything, and the adhesive doesn't care what the fiber is made of. The transfer sticks.
The reason synthetics require lower temperatures than cotton comes down to heat tolerance. Cotton can handle 310–325°F without issue. Polyester softens and can scorch at those temperatures, and — more importantly on bright or dark fabrics — excess heat triggers dye migration: the polyester's own dyes become activated and bleed upward through the transfer. Dropping to 270–285°F eliminates most of that risk while still achieving full adhesion.
The rule for synthetics: lower temperature, slightly longer dwell, cold peel. You're trading speed for control. The transfer will bond just as completely — it just needs time rather than peak heat to do it.
Not all polyester behaves the same. 100% performance polyester (the kind used in jerseys and athletic wear) has different dye characteristics than heather poly or poly-cotton blends. Bright solid colors — royal blue, red, black — carry much higher dye migration risk than heather or pastel poly. The same 280°F setting that works perfectly on a heather gray poly tee might cause migration on a red jersey. Adjust accordingly and test on a sample first when you're working with an unfamiliar fabric.
Key Problem
What Is Dye Migration and How Do You Prevent It?
Dye migration is the most commonly named problem with DTF on polyester — and the least clearly explained. Here's what's actually happening.
The mechanism
Polyester fibers are dyed during manufacturing using disperse dyes, which embed into the fiber under heat. The dye is trapped inside the fiber at room temperature, but at higher temperatures — above the 280–285°F range for most polyester — those dye molecules become mobile again. When you apply a heat press to a polyester garment, you're re-activating the same dye chemistry used to color the fabric in the first place. The dye can then migrate outward, moving through the TPU adhesive layer and into the white or light-colored areas of your transfer. The result looks like a faint discoloration or "stain" creeping into the design — most visible in white or light areas on bright or dark poly fabrics. This is also why the ceiling we use is 285°F: it's the practical buffer below that activation threshold for most polyester.
Left: clean DTF transfer pressed at correct temperature. Right: dye migration — excess heat caused the polyester dye to ghost upward through the transfer film.
What triggers it
- Temperature too high — the biggest factor. Stay at or below 285°F for 100% polyester.
- Moisture in the fabric — moisture accelerates dye activation under heat. Always pre-press to drive it out.
- Hot peel — pulling the film while the garment is still hot continues the heat cycle, extending the migration window. Cold peel stops it.
- Bright or heavily dyed fabric — red, royal blue, black polyester has more dye molecules to migrate than heather or pastel fabrics.
- Long dwell time at high temp — more heat-seconds = more activation. Shorter dwell at the right temp is safer than long dwell at the wrong temp.
How to prevent it
- Set temperature correctly — 270–285°F for 100% polyester. This is the single most effective intervention.
- Pre-press 3–5 seconds — removes moisture and pre-shrinks the fabric before the transfer goes down.
- Use cold peel — wait until the garment is fully cool before removing the carrier film. Do not peel warm.
- Use a Teflon sheet or parchment — adds slight insulation and protects the fabric surface from direct contact with the platen.
- Test on a sample first — on any bright-colored 100% polyester garment you haven't pressed before, run a test piece.
Migration typically appears within minutes of pressing, while the garment is still warm. If your white areas look clean immediately after pressing and during peel, you're in good shape. Discoloration that appears hours later (especially after washing) is a different issue — usually incomplete adhesion causing lifting, not migration.
Per-Fabric Guide
Settings and Considerations by Fabric Type
Each synthetic fabric type has different heat tolerance and behavior.
The four main synthetic fabric types — each requires slightly different press settings when applying DTF transfers.
Polyester
100% Polyester
Includes jerseys, athletic wear, performance shirts. High dye migration risk on bright/dark colors. Always pre-press. Test on new fabrics before production runs. Note: some polyester fabrics are labeled "sublimation-ready" or are coated for sublimation printing — these may behave differently under DTF heat, as the coating can affect adhesion. Always test a sample first.
Blend
60/40 Poly-Cotton
More polyester than a 50/50, so treat it closer to 100% poly. Dye migration risk increases with poly percentage. Err toward the lower end of the range on bright colors.
Blend
50/50 Poly-Cotton
The cotton content raises the safe temperature floor. 290–300°F is appropriate here. Migration risk is moderate — still pre-press, still peel cold. This is the most common customer garment type.
Nylon
Nylon Fabric
Most heat-sensitive common synthetic. Can scorch, warp, or develop shiny pressed marks above 275°F. Always use a Teflon sheet. Works on windbreakers, nylon bags, nylon athletic shorts. When pressing structured items like bags or windbreakers, be aware that seams and zippers prevent the platen from sitting flat — work around them or use a raised platen or folded towel underneath to ensure even pressure across the print area.
Spandex, Lycra & Elastane (Stretch Fabrics)
Stretch fabrics present a different set of challenges than straight poly or nylon. The heat sensitivity is similar to polyester — keep temperature at 270°F max — but the bigger variable is stretch behavior post-press.
DTF's TPU adhesive has natural flex. A transfer pressed at the right settings onto a spandex fabric will stretch with the garment through normal body movement without cracking or peeling. The risk area is large prints on very tight-fitting garments where the fabric is under constant stretch tension. In those cases, the adhesive at the edges of a large print is working harder than the center, which is why edge lifting is the failure mode to watch for rather than cracking across the design.
- Press at 270°F max — spandex and elastane blends are typically mixed with nylon or polyester; treat the blend as heat-sensitive.
- Lighter pressure — heavy platen pressure can embed the transfer into stretch fabric in a way that causes crinkle or adhesion inconsistency once the fabric returns to natural shape.
- 12 seconds dwell — shorter than standard. You have less margin before the stretch fibers are affected.
- Don't stretch the garment during pressing — press with the fabric in its natural, relaxed state. If the fabric is stretched when the adhesive cures, it will look inconsistent when the garment is worn relaxed.
- Cold peel, always — waiting until fully cool before peeling gives the adhesive full time to set in the relaxed fabric position.
Process
Step-by-Step: How to Press DTF Transfers on Synthetic Fabrics
The process for synthetics is the same as for cotton with a few critical adjustments baked in. Follow this sequence exactly and you'll avoid the most common failure points.
- Set your press temperature Dial in the correct temperature for your specific fabric type (see the table above). Do not use cotton settings on polyester. Let the press fully reach temperature before pressing — don't rush this.
- Pre-press the garment: 3–5 seconds Place the garment on the lower platen and press without the transfer for 3–5 seconds. This drives out moisture trapped in the fabric and pre-shrinks it slightly. Skipping this step on polyester is the most common cause of adhesion problems. Moisture under the transfer during pressing creates steam pockets that prevent the adhesive from bonding evenly.
- Position your transfer Place the transfer ink-side down on the garment. For stretch fabrics, make sure the garment is laying flat and relaxed — not stretched out. For large designs, align carefully before lowering the platen because repositioning is not possible once heat is applied.
- Use a Teflon sheet or parchment Place a Teflon sheet over the transfer film before pressing. On synthetics especially, this provides a buffer between the platen and the film, reduces hot spots, and protects the fabric surface from direct heat contact. Do not skip this on nylon.
- Press at the correct time and pressure Lower the platen with medium pressure (light-to-medium for spandex) and hold for the recommended dwell time. Do not exceed dwell — more time at temp increases migration and scorch risk, not adhesion quality.
- Allow to cool completely before peeling Remove the garment from the press and set it aside. Wait until it returns to room temperature — not warm, cool. The cold peel on synthetics is not just a preference, it's a functional step. Peeling while warm causes ghosting (a faint outline around the design) on bright and dark polyester fabrics, and it can cause edge lifting on stretch fabrics before the adhesive has fully set.
- Inspect and repress if needed After peeling, check edges and corners. If any area hasn't bonded (it will feel loose or look matte instead of pressed-in), lay the carrier film back over it and repress for 5–8 seconds. Edges are the most common area to need a secondary press, especially on textured polyester.
On repress: a secondary press on synthetics should be at slightly lower temperature or shorter time than the initial press — drop 5–10°F or reduce dwell to 6–8 seconds for the second pass. You've already had one full heat cycle — the risk of migration or scorching is slightly elevated on the second pass. Keep it short.
Troubleshooting
When Things Go Wrong: Common Problems on Synthetics
Problem 1
Scorching or Shiny Press Marks on the Fabric
What it looks like: The fabric around or under the transfer has a glazed, shiny, or discolored area. In severe cases, the fabric is damaged.
Cause: Temperature too high, or direct platen contact with synthetic fabric without a Teflon sheet.
Fix: Drop temperature. For nylon, stay at 265–275°F. For 100% polyester, 270–285°F. Always use a Teflon sheet or parchment layer between the platen and the transfer. Once scorching happens, it cannot be reversed — test on scrap before production runs.
Problem 2
Dye Migration — Discoloration in White Areas
What it looks like: White or light-colored areas of the design have a pinkish, bluish, or reddish tint. Most visible on bright-colored polyester (red, royal blue, black).
Cause: Excess heat reactivated the polyester dye, which migrated through the adhesive into the ink layer.
Fix: Lower temperature (stay under 285°F for 100% poly), always pre-press to remove moisture, use cold peel, and add a Teflon sheet. If migration happens consistently on a specific fabric, drop temperature another 5°F and increase dwell time slightly to compensate. Once migration has occurred, it cannot be undone.
Problem 3
Poor Adhesion — Transfer Peels or Lifts
What it looks like: The transfer lifts at edges or doesn't bond at all. Pulling or peeling sensation when the garment is flexed.
Cause: Usually moisture in the fabric (skipped pre-press), or temperature too low to fully activate the adhesive, or hot peel on polyester.
Fix: Pre-press every garment before applying the transfer. Double-check that your press is actually reaching the set temperature — many entry-level presses run cool. If adhesion is consistently poor across a synthetic garment type, increase dwell time slightly rather than increasing temperature (which risks migration and scorching).
Problem 4
Edge Lifting on Stretch Fabric
What it looks like: The main body of the transfer is adhered, but edges and corners begin lifting after wear or washing.
Cause: The adhesive at the edges is under mechanical stress from the fabric stretching. Can also happen if the fabric was stretched during pressing (the adhesive cured in a stretched position and relaxes unevenly).
Fix: Press with the fabric completely relaxed (flat, no tension). For activewear and fitted stretch garments, consider smaller designs — large-format prints have more edge area under constant stretch. A secondary press at the edges immediately after initial pressing can also help seal them more completely.
DTF transfers on spandex flex naturally with the fabric — the TPU adhesive layer moves without cracking under normal stretch.
Method Comparison
DTF vs. Sublimation on Polyester — The Actual Differences
This question comes up constantly because both methods work on polyester.
| Factor | DTF | Sublimation |
|---|---|---|
| Works on dark/colored poly | Yes — any color | No — light or white poly only |
| Works on poly blends (50/50) | Yes | Partial — results degrade below ~65% poly |
| Works on nylon | Yes | No |
| Works on cotton | Yes | No |
| Hand feel | Slight tactile layer (TPU adhesive) | None — ink is part of the fiber |
| Durability | Up to 100 wash cycles with proper care | Permanent — dye bonds into fiber |
| Dye migration risk | Yes, if settings are wrong | Not applicable (sublimation IS the dye) |
| Color accuracy on light poly | Excellent | Excellent |
The clear-cut answer: if you're printing on anything other than white or very light polyester, use DTF. Sublimation physically cannot produce accurate color on dark polyester — the translucent dye gets swallowed by the dark fabric. DTF works on dark polyester, black polyester, poly blends, and nylon without any of those limitations.
Where sublimation has a genuine advantage is all-over printing on white polyester — the soft hand feel and permanent bond make it the better choice for full-coverage prints on light performance wear. For everything else, DTF is more versatile. See our full DTF vs. Sublimation comparison for a deeper breakdown.
Care & Durability
Wash Care for DTF Transfers on Synthetic Fabrics
Wash care matters a bit more for synthetics than cotton — the adhesive bonds to the fabric surface rather than the fiber weave gripping it from multiple angles. That means the wash cycle has more opportunity to work against the bond if you're not careful.
- Turn inside-out before washing — reduces mechanical abrasion on the print surface during the wash cycle.
- Cold water, gentle cycle — heat and agitation are both hard on the adhesive bond, especially on stretch fabrics that flex during washing.
- No bleach — bleach degrades the TPU adhesive and will shorten the lifespan of the transfer, particularly on synthetics.
- No fabric softener — fabric softener leaves a coating on synthetic fibers that gradually degrades the adhesive bond. This is especially true for performance polyester and nylon, which are more prone to softener buildup.
- Air dry or low heat — high dryer heat re-activates the press cycle in miniature, which can cause the adhesive to soften slightly and edge lifting to begin. Air dry flat when possible for fitted stretch garments.
- Wait 24 hours before first wash — the adhesive continues curing for up to 24 hours after pressing. Washing immediately after pressing dramatically increases the chance of adhesion failure on the first wash.
- Don't iron directly over the transfer — if ironing a synthetic garment is needed, use a low setting and avoid the print area entirely.
With proper care, DTF transfers on polyester and synthetics can match the same up to 100 wash cycle durability as cotton — the lower adhesion margin on synthetics is offset by following the care guidelines consistently. The most common failure mode is edge lifting starting at wash cycles 20–30 when wash habits are poor (hot water, high dryer heat, fabric softener). Follow the care guidelines and the bond holds.
Related Guides
Keep Reading
FAQ
Frequently Asked Questions
Can you put DTF transfers on 100% polyester?
Yes. DTF transfers work on 100% polyester. The TPU adhesive bonds to the fabric surface regardless of fiber type. The main adjustments from cotton: press at 270–285°F (not the 310–325°F you'd use for cotton), always pre-press to remove moisture, and peel cold. High-migration-risk fabrics — bright reds, royal blues, black polyester — should be tested on a scrap piece first.
What temperature do you heat press DTF on polyester?
For 100% polyester: 270–285°F for 12–15 seconds. For 50/50 poly-cotton blends, the safe range is 290–300°F because the cotton fiber raises the heat floor. For 60/40 blends, stay in the 280–290°F range. Never use cotton settings (310–325°F) on 100% polyester — you'll get scorching and dye migration. See the full temperature settings guide for a complete reference.
Will DTF transfers cause dye migration on polyester?
Dye migration can happen on polyester if your settings are wrong — specifically if temperature is too high or you peel hot. Dye migration is the polyester's own dye becoming mobile under excess heat and bleeding into the white areas of your transfer. Prevention: keep temperature at or below 285°F for 100% poly, pre-press to remove moisture, and always use cold peel (wait until the garment is fully cool). Bright-colored and dark polyester fabrics have the highest migration risk. One useful early indicator: dye migration typically appears while the garment is still warm — if you notice a slight pink or blue tint to white areas of the design as you peel, that's migration in progress. Letting the garment cool slowly without touching the transfer (after cold peel) reduces the final extent of any migration.
Do DTF transfers work on nylon fabric?
Yes, DTF transfers bond to nylon. Nylon is more heat-sensitive than polyester, so settings are dialed down: 265–275°F, medium pressure, 12 seconds maximum. Always use a Teflon sheet between the platen and the nylon — direct contact at heat can scorch or warp the fabric. Test on a sample first when working with new nylon garments. Peel cold.
Can DTF transfers stretch with spandex?
Yes. DTF's TPU adhesive has natural flex properties — it stretches and moves with the fabric without cracking under normal wear. The settings for spandex and elastane blends are 270°F max, lighter pressure, 12 seconds, cold peel. Press with the fabric in a fully relaxed position, not stretched. Large prints on very tight-fitting garments can experience edge lifting over time due to constant stretch tension at the adhesive edges; design sizing matters for activewear.
What's the difference between DTF and sublimation on polyester?
The biggest practical difference is fabric color compatibility. Sublimation only works on white or very light polyester because the dyes are translucent — on dark fabric, they disappear. DTF works on polyester of any color, including black, because the transfer film is opaque and sits on top of the fabric. DTF also works on poly blends and nylon; sublimation requires high-percentage polyester and won't work on cotton or nylon. See the full DTF vs. sublimation comparison for more detail.
